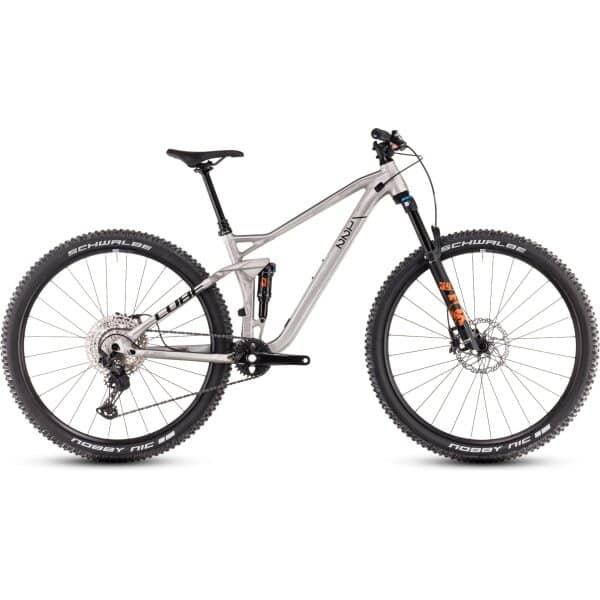

Cube Stereo ONE22 Race rawmetal´n´black – 2026

Περιγραφή

frame HPA Advanced Hydroform, ATG, ETC 4-Link, AXH
size Size Split: 27.5: XS // 29: S, M, L, XL
Suspension fork Fox 34 Float Rhythm, Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 130mm
shock Fox Float, 190x45mm, Open/Medium/Firm Mode
shock hardware Top: 40x8mm, Bottom: 22.2x8mm
brake system Shimano XT BR-M8100, Hydr. Disc Brake (180/180)
rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
shifters Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
bottom bracket Shimano BB-MT500PA, 92mm Pressfit
crankset Shimano XT FC-M8100, Boost, 30T
cassette Shimano Deore CS-M6100, 10-51T
chain Shimano CN-M6100
headset VP Tapered, Top Zero-Stack 1 1/8″ (OD 44mm), Bottom Zero-Stack 1 1/2″ (OD 56mm)
Stem Newmen Evolution 318.4, 31.8mm
handlebar CUBE Rise Trail Bar, 760mm
grips ACID Disrupt, Soft Compound
wheelset Newmen Performance 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
tyres Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4
saddle ACID Nuance Lite
seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
seat clamp CUBE Screwlock, 34.9mm
colour rawmetal´n´black
weight 14,2 kg
Structural Weight 115 kg

Geometry
XS S M L XL
Seat tube 350 370 420 470 520
Top Tube Horizontal 547 570 591 614 640
Seat angle 75.3° 75.3° 75.3° 75.3° 75.3°
Head tube angle 67.5° 67° 67° 67° 67°
Chainstays 417 436 436 436 436
Head tube 100 100 103 113 133
Wheelbase 1096 1145 1166 1190 1218
BB-Height to Hub 20 -40 -40 -40 -40
Protrusion height – 80mm 699 696 739 770 810
Reach 405 420 440 460 480
Stack 567 604 606 615 634

Ergonomics
XS S M L XL
Length seat post 361 403 462 462 510
Diameter seatpost 31.6 31.6 31.6 31.6 31.6
Angle stem 6° 6° 6° 6° 6°
Crank length 170 170 170 170 170
Diameter tire maximum 718 758 758 758 758
Width tire maximum 64 64 64 64 64
Stem length 40 50 50 60 70
Handlebar width 760 760 760 760 760
Stroke seatpost 100 120 150 150 170
Rear suspension travel 120 120 120 120 120

All values are given in millimetres or degrees.
