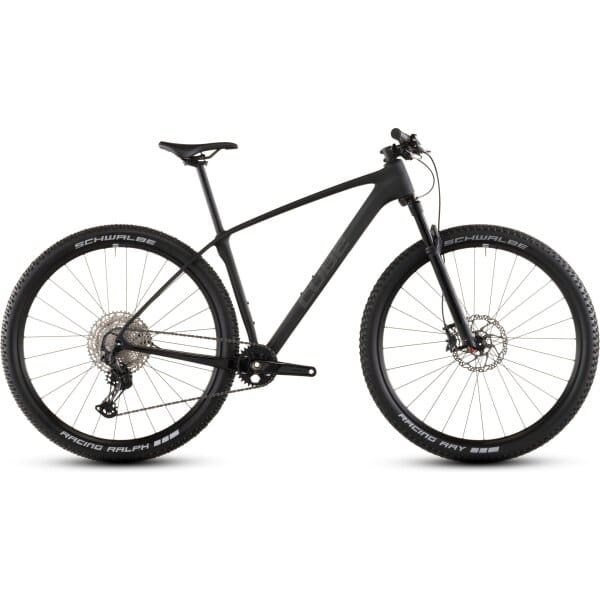

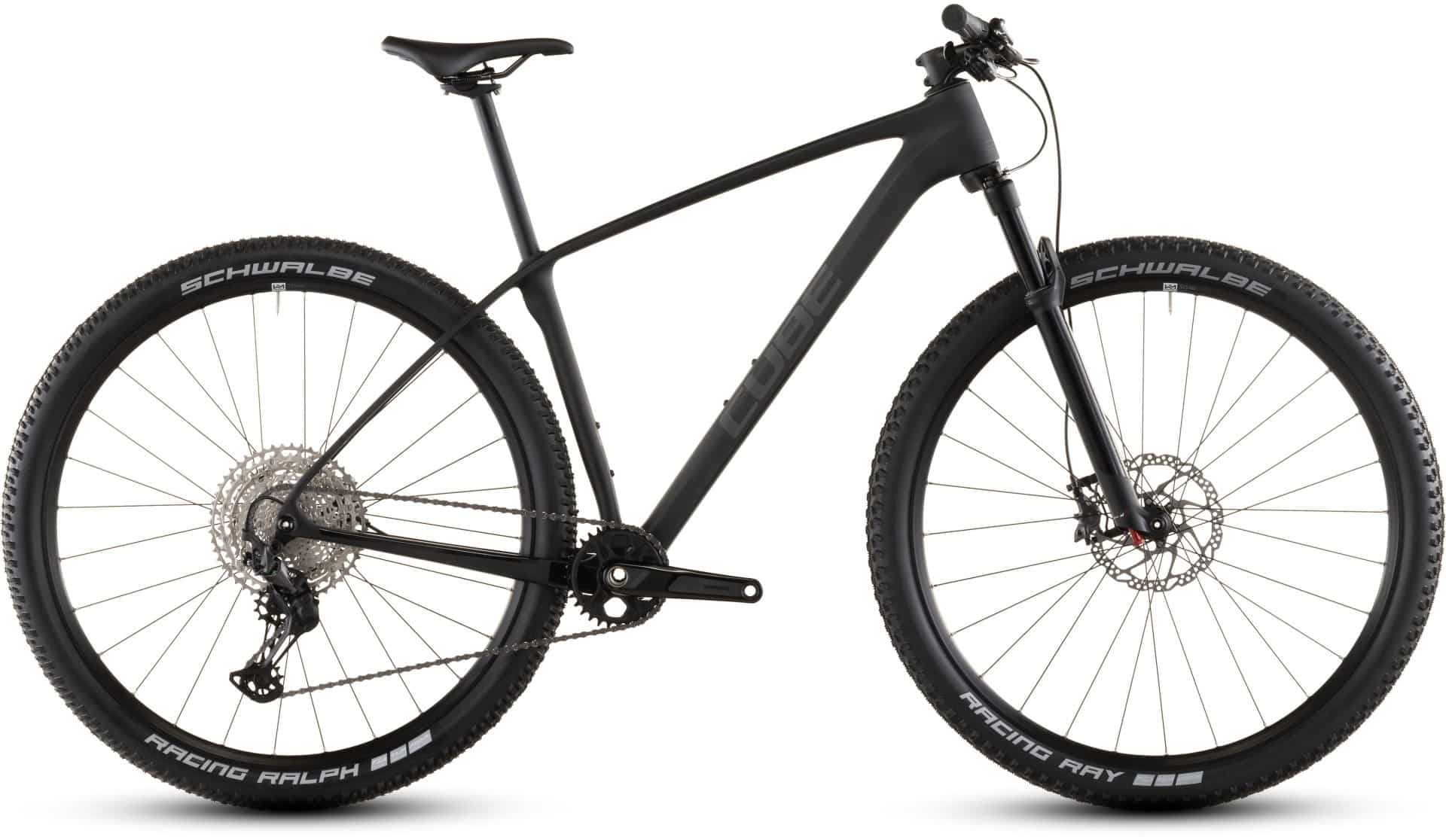

Cube Reaction C:62 Pro blackline – 2026

Περιγραφή

frame C:62® Monocoque Advanced Twin Mold Technology, Boost 12x148mm, Full Internal Cable Routing, Dropper Post ready, UDH™
size 29: S, M, L, XL, XXL
Suspension fork RockShox SID SL Base, Tapered, 15x110mm, 100mm, Oneloc
brake system Shimano XT BR-M8100, Hydr. Disc Brake (180/160)
rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
shifters Shimano XT SL-M8100-IR, Direct Attach
bottom bracket Shimano BB-MT500PA, 92mm Pressfit
crankset Shimano FC-MT611, 32T, Boost
cassette Shimano Deore CS-M6100, 10-51T
chain Shimano CN-M6100
headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem Newmen Evolution 318.4, 31.8mm
handlebar Newmen Evolution SL 318.10, 760mm
grips ACID React Pro
wheelset Newmen Performance 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready CUBE Engineered By Newmen, 15mm, Boost, Centerlock
front tyre Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25
rear tyre Schwalbe Racing Ralph, Addix Performance, Kevlar, 2.25
saddle ACID Nuance Lite
seat post Newmen Evolution, 27.2mm
colour blackline
weight 10,7 kg
Structural Weight 115 kg

Geometry
S M L XL XXL
Seat tube 370 420 450 510 560
Top Tube Horizontal 578 598 618 638 658
Seat angle 74° 74° 74° 74° 74°
Head tube angle 68.5° 68.5° 68.5° 68.5° 68.5°
Chainstays 426 426 426 426 426
Head tube 97 107 117 127 142
Wheelbase 1088 1109 1130 1151 1173
BB-Height to Hub 65 65 65 65 65
Protrusion height – 80mm 767 801 821 859 866
Reach 405 422 439 456 472
Stack 612 621 630 639 653

Ergonomics
S M L XL XXL
Length seat post 400 400 430 430 430
Diameter seatpost 27.2 27.2 27.2 27.2 27.2
Angle stem 6° 6° 6° 6° 6°
Crank length 170 175 175 175 175
Diameter tire maximum 749 749 749 749 749
Width tire maximum 60 60 60 60 60
Stem length 60 70 70 70 70
Handlebar width 760 760 760 760 760

All values are given in millimetres or degrees.
