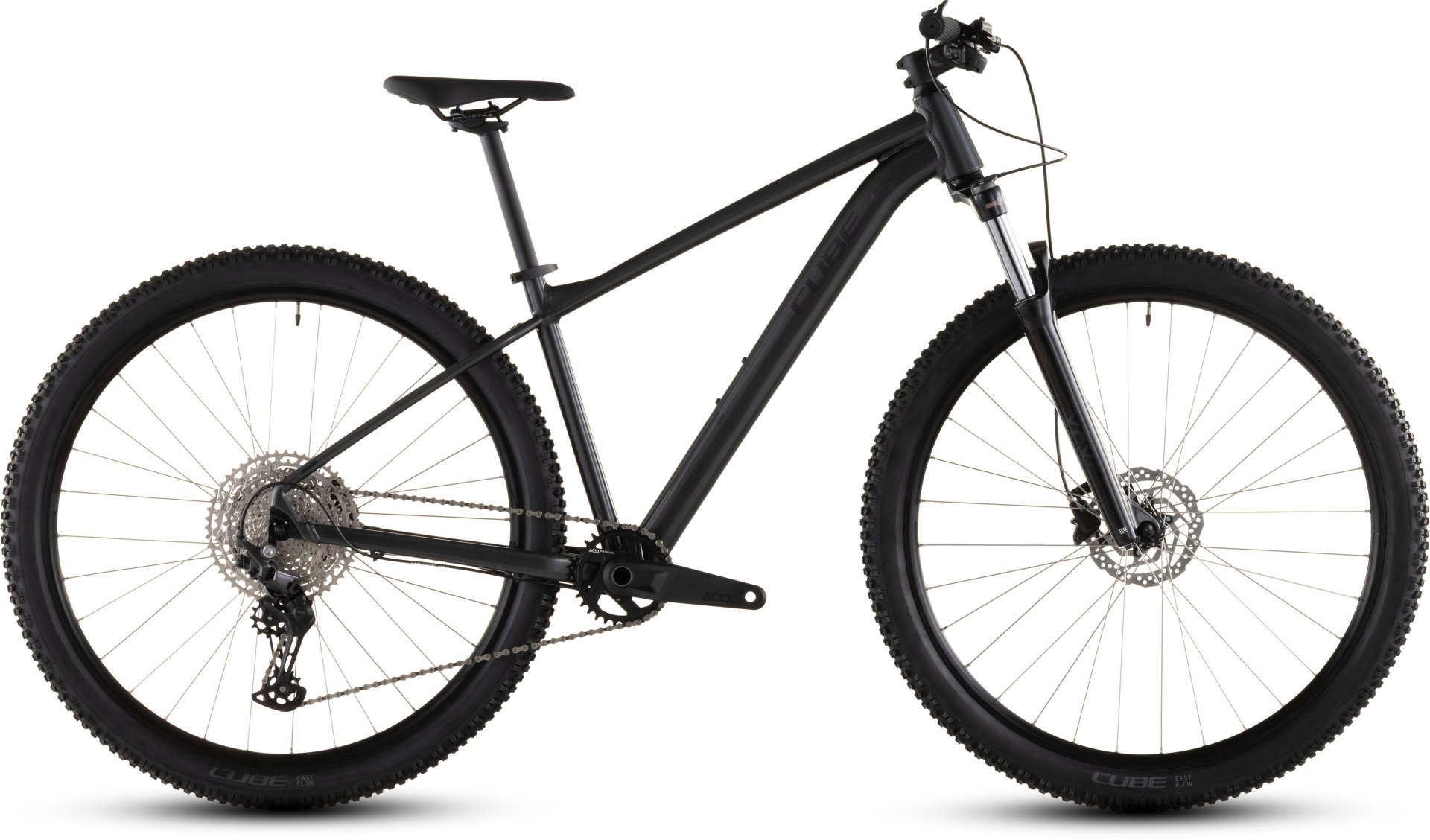

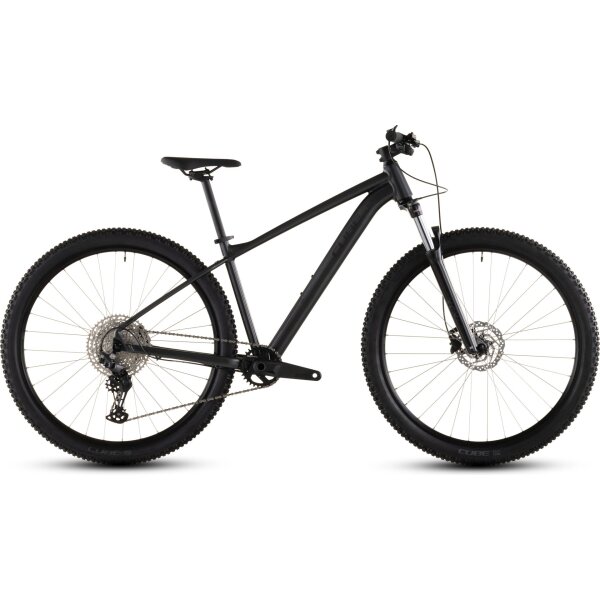

Cube Aim SLX slateblack´n´black – 2026

Περιγραφή

frame Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
size Size Split: 27.5: XS, S // 29: M, L, XL, XXL
Suspension fork SR Suntour XCM Disc, 100mm, Remote Lockout
brake system Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
rear derailleur Shimano Deore RD-M6100-SGS, 12-Speed
shifters Shimano Deore SL-M6100, Rapidfire Plus
bottom bracket Prowheel BSA PW-MB68
crankset Acid MTB Pro, 32T
cassette Shimano Deore CS-M6100, 10-51T
chain KMC X12
headset CUBE FPH868, Tapered, Semi-Integrated
Stem CUBE Performance Stem, 31.8mm
handlebar CUBE Rise Trail Bar, 680mm
grips ACID Icon
rims Acid EX25, 32H, Disc, Tubeless Ready
front hub Shimano HB-QC300, QR, Centerlock
rear hub Shimano FH-QC300-HM, QR, Centerlock
tyres Cube MTB, 2,25
saddle ACID Venec Lite
seat post CUBE Performance Post, 27.2mm
seat clamp CUBE Varioclose, 31.8mm
pedals CUBE PP MTB
colour dustyolive´n´gold
weight 15,1 kg
Structural Weight 140 kg

Geometry
XS S M L XL XXL
Seat tube 340 370 420 470 515 560
Top Tube Horizontal 555 575 595 615 635 655
Seat angle 74° 73.5° 73.5° 73.5° 73.5° 73.5°
Head tube angle 68.5° 68.5° 68.5° 68.5° 68.5° 68.5°
Chainstays 427 427 450 450 450 450
Head tube 108 111 111 122 142 157
Wheelbase 1068 1082 1125 1146 1168 1190
BB-Height to Hub 52 52 65 65 65 65
Protrusion height – 80mm 707 720 759 792 824 858
Reach 384 398 409 426 441 457
Stack 595 598 627 637 656 670

Ergonomics
XS S M L XL XXL
Length seat post 350 350 400 400 400 400
Diameter seatpost 27.2 27.2 27.2 27.2 27.2 27.2
Angle stem 6° 6° 6° 6° 6° 6°
Crank length 165 170 170 175 175 175
Diameter tire maximum 708 708 747 747 747 747
Width tire maximum 57 57 57 57 57 57
Stem length 50 50 60 60 70 70
Handlebar width 680 680 720 720 720 720

All values are given in millimetres or degrees.
