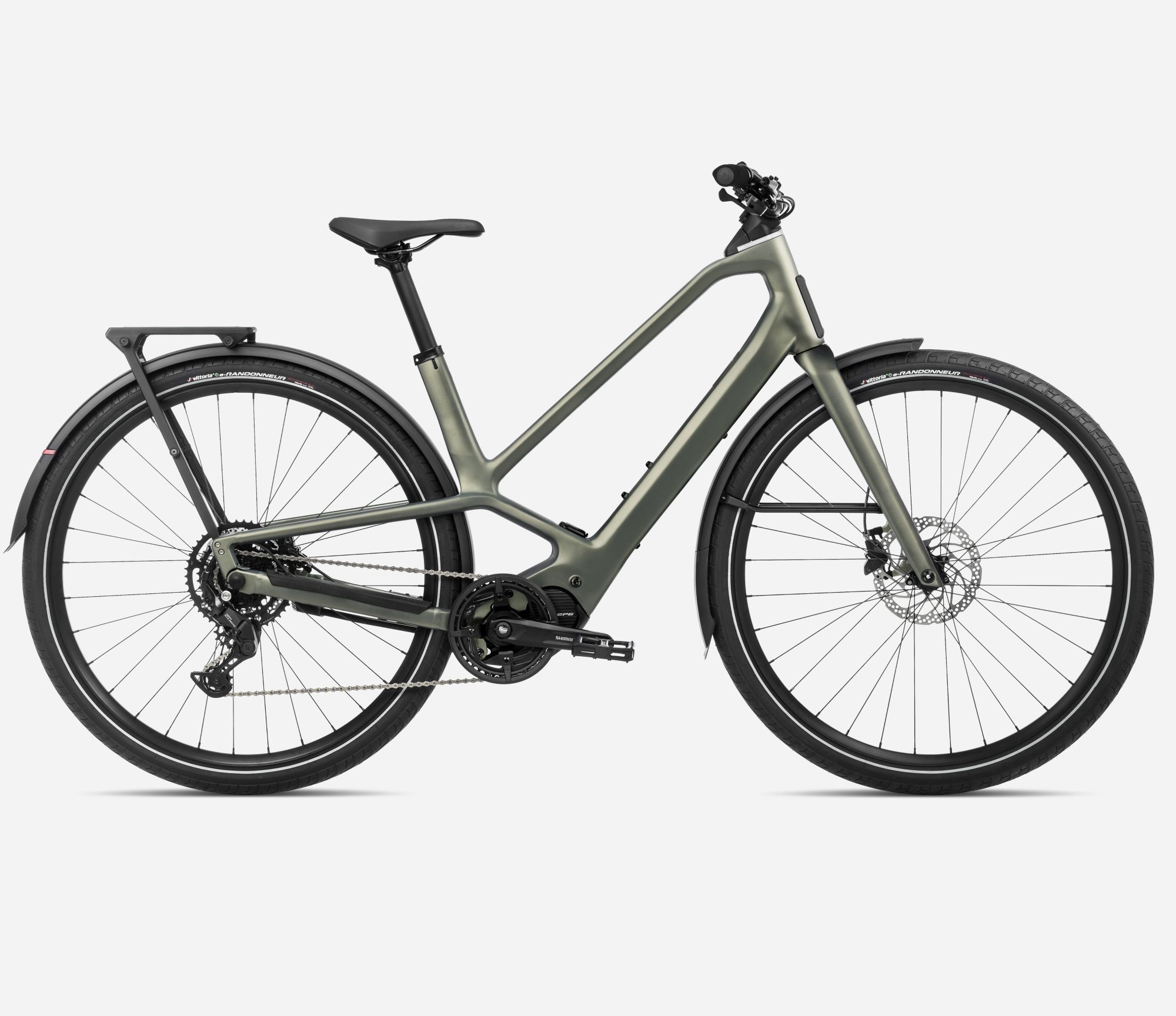

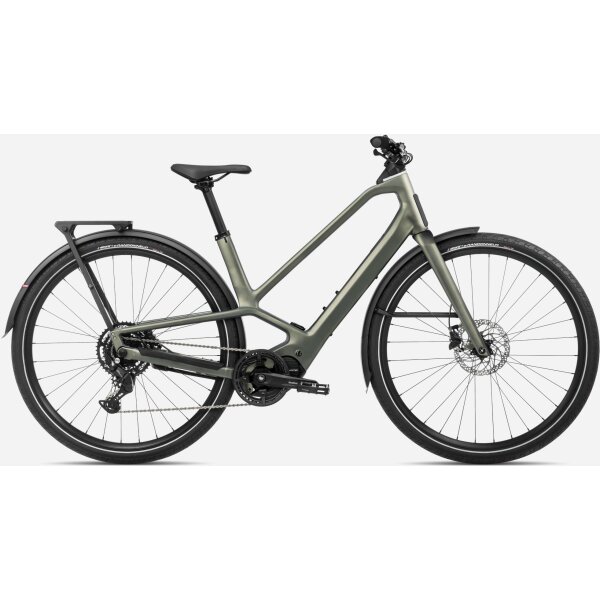

ORBEA DIEM 30

Περιγραφή

Frameset
Frame

Orbea Diem Hydro High Polished 2024, Flex Tech, 135×9 / 142×12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible
Fork

Orbea Diem carbon fork, full carbon, 1″ 1/8 – 1″ 1/5 , post mount disc mount, Thru Axle 12x100mm, thread M12x1. Long mudguards compatible.
Steerer tube

FSA 1-1/2″ Integrated Aluminium Cup
Ebike
Battery

Orbea Internal 540Wh (Optional 252 Wh Range Extender)
RANGE EXTENDER

N/A
Motor

Shimano EP600
CHARGER

Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote

EN600-L
Drivetrain
Chainring

Alloy 40t w/chainguard
Crank

Shimano Steps EM600
Shifters

Shimano Cues SL-U4000
Cassette

Shimano CS-LG300 11-46t 9-Speed
Rear derailleur

Shimano Cues U4000 GS Shadow
Chain

KMC eGlide
Cockpit
Handlebar

Orbea Urban, Integrated Light, Rise 54, Width 700
Brakes
Brakes

Shimano MT201 Hydraulic Disc
Brakes Configuration

N/A
Wheels
Wheels

Alloy, Tubeless, 25c, 32H
Tyres

Vittoria e-Randonneur 50-622, Reflective band
Accessories
Pedals

VP-537 Black
Front carrier

N/A
Rear carrier

Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
Mudguard

Curana Apollo Orbit 60mm
Front Position Light

Orbea integrated, USB-C charging point
Front light

Supernova Starstream Pure, Low Beam
Rear light

Orbea Fender integrated, with alert light
Quick stand

Orbea Diem Integrated
Bell

Knog OI Classic
Components
Seatpost

Alloy, 31.6mm, Setback 0
Saddle

Selle Royal Vivo Ergo

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
