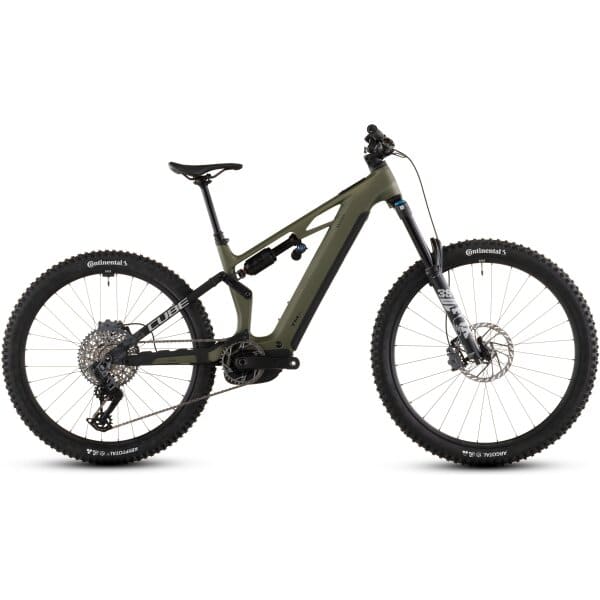

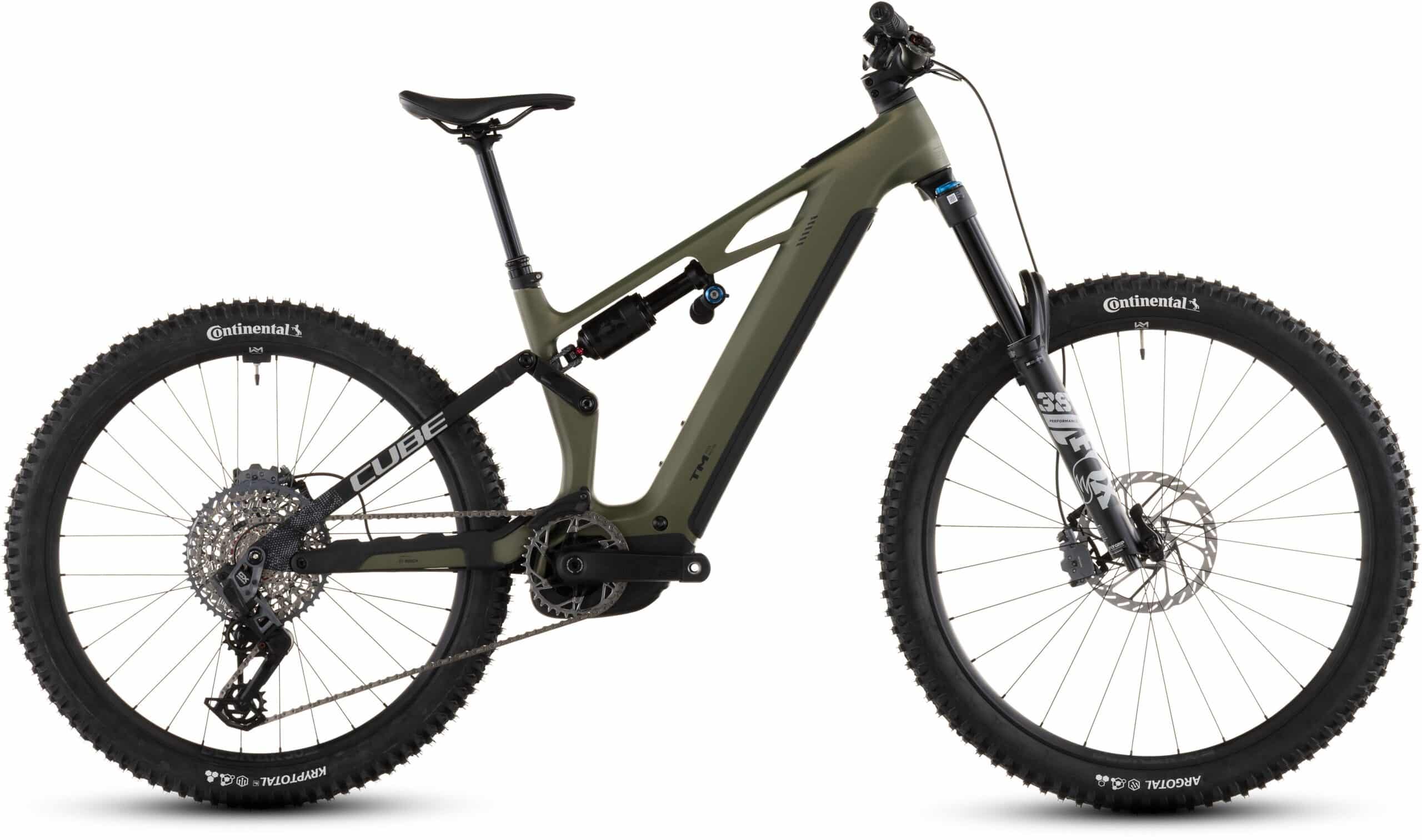

Cube Stereo Hybrid ONE77 HPC TM 800 (Mullet) reedgreen´n´matrix – 2026

Περιγραφή

Product Details

frame C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
size S, M, L, XL
Suspension fork Fox 38 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Optimized, 170mm
drive unit Bosch Drive Unit Performance Line CX max.100Nm (BDU38), Smart System
Remote Bosch System Control incl. Mini Remote
battery Bosch PowerTube 800wh
display Bosch Kiox 400C
charger Bosch 4A
shock Fox Float X2 Performance, 230x65mm, Low Speed Rebound & Compression w/ 2-Position Lever
shock hardware Front: 30x8mm, Rear: DU-Bushing 12,7mm
brake system Sram Maven Bronze, Hydr. Disc Brake (200/200)
rear derailleur Sram GX Eagle AXS™ Transmission, 12-Speed
shifters Sram AXS™ Pod Controller
crankset ACID MTB Hybrid Carbon, 36T
cassette Sram XS-1275, 10-52T
chain Sram GX Eagle™ Transmission
chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem CUBE Performance Stem E-MTB 35, FPI-Link
handlebar CUBE Rise Trail Bar 35
grips ACID Disrupt, Soft Compound
wheelset Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
front tyre Conti Agrotal, Enduro Soft, Tubeless Ready, 2.4
rear tyre Conti Kryptotal, Downhill Soft, Tubeless Ready, 2.4
saddle ACID Venec EMTB Trail 140
seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
seat clamp CUBE Semi-Integrated
pedals ACID PP MTB
colour reedgreen´n´matrix
weight 24,6 kg
Maximum rider weight 125 kg
Structural Weight 160 kg

Recommended products​

#93362 ACID Carrier FULL SUSPENSION RILink Axle Mount

Geometry
Slack/Moderate S M L XL
Seat tube 370 405 420 480
Top Tube Horizontal 572 / 573 597 / 598 625 / 626 659 / 661
Seat angle 76.7° / 76.5° 76.7° / 76.5° 76.7° / 76.5° 76.7° / 76.5°
Head tube angle 63.8° / 64.4° 63.8° / 64.4° 63.8° / 64.4° 63.8° / 64.4°
Chainstays 443 443 443 443
Head tube 103 103 115 130
Wheelbase 1213 / 1206 1238 / 1231 1269 / 1261 1305 / 1297
BB-Height to Hub 13 13 13 13
Protrusion height – 80mm 758 754 753 752
Reach 427 / 425 452 / 450 477 / 475 506 / 505
Stack 635 / 637 635 / 637 645 / 648 659 / 661

Ergonomics
S M L XL
Length seat post 371 429 472 472
Diameter seatpost 31.6 31.6 31.6 31.6
Angle stem 12° 12° 12° 12°
Crank length 165 165 165 165
Diameter tire maximum 721 721 721 721
Width tire maximum 66 66 66 66
Stem length 50 50 50 50
Handlebar width 780 780 780 780
Stroke seatpost 120 150 170 170
Rear suspension travel 172 172 172 172

All values are given in millimetres or degrees.
