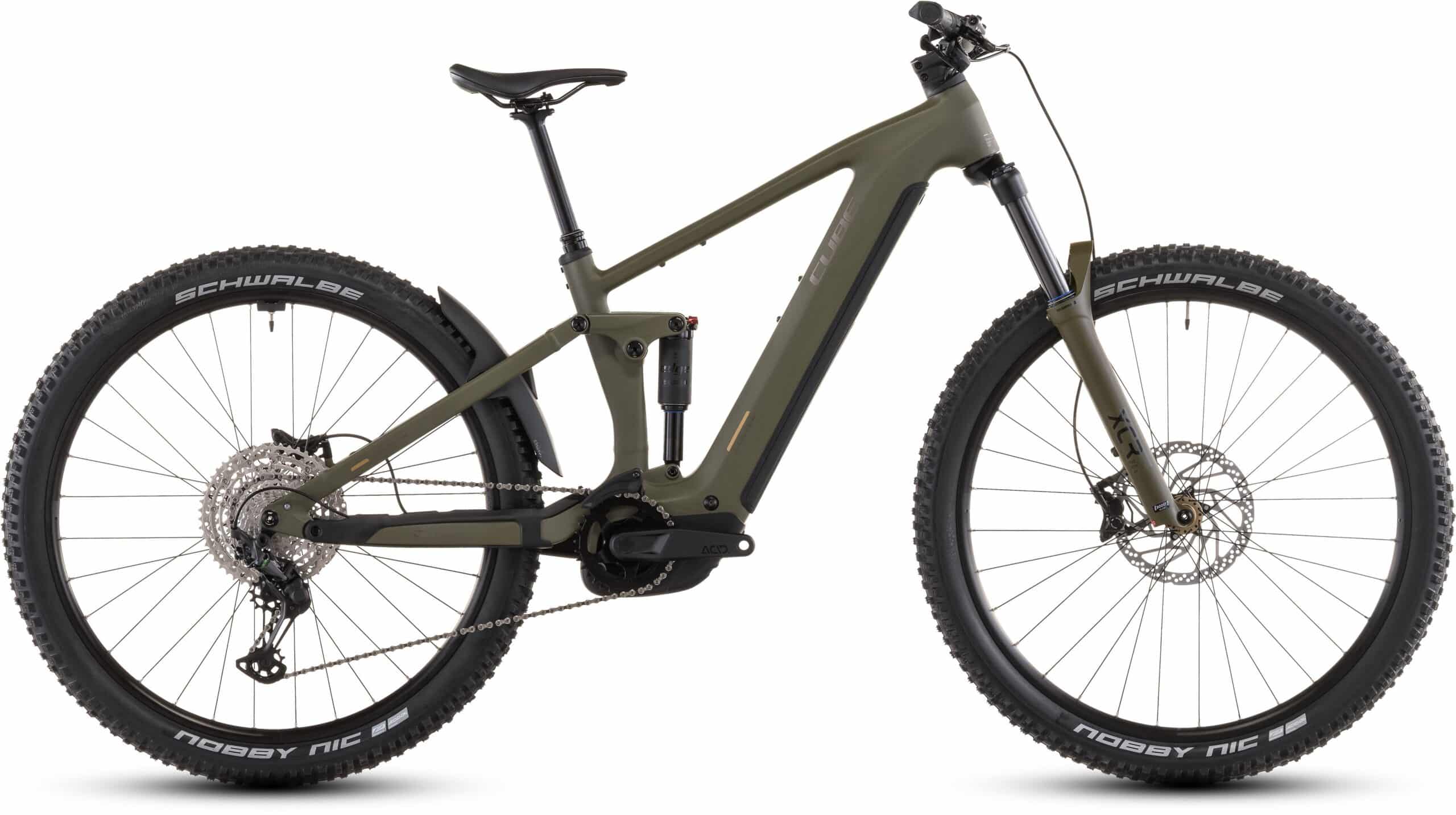

Cube Stereo Hybrid ONE44 Pro 800 dustyolive´n´gold – 2026

Περιγραφή

Product details

frame Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
size Size Split: 27.5: S // 29: M L XL
Suspension fork SR Suntour XCR36 2CR Air, Tapered, 15x110mm, 140mm
drive unit Bosch Performance Line CX max. 100Nm (BDU38)
Remote Bosch Purion 200 w/ Integrated Display
battery Bosch PowerTube 800
charger Bosch 2A
shock SR Suntour EdgeX R 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount
shock hardware Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
brake system Shimano BR-MT420, Hydr. Disc Brake (203/203)
rear derailleur Shimano XT RD-M8100-SGS, Shadowplus, 12-Speed
shifters Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
crankset ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
cassette Shimano Deore CS-M6100, 10-51T
chain KMC e12
chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
headset ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm)
Stem CUBE Performance Stem E-MTB 35, FPI-Link
handlebar CUBE Rise Trail Bar 35
grips ACID Hybrid Perform
wheels ACID SLX30, 32/32 Spokes, Disc, 15x110mm/12x148mm, Tubeless Ready
tyres Schwalbe Nobby Nic, Performance, 2.6
saddle ACID Venec EMTB Plus 145
seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
pedals ACID PP MTB
colour dustyolive´n´gold
weight 26,6 kg
Maximum rider weight 120 kg
Structural Weight 150 kg

Recommended products

#93435 ACID Mudguard MUD SHIELD SIC 2.0 rear
#93453 ACID Mudguard Set SIC 2.0 84 29″ Fully
#93454 ACID Mudguard Set SIC 2.0 84 27.5″ Fully
#93362 ACID Carrier FULL SUSPENSION RILink Axle Mount
#93455 ACID Carrier SIC 2.0 RAIL
#93456 ACID Carrier SIC 2.0 TOP RAIL
#94926 ACID Carrier SIC 2.0 RILink 27,5-29
#93468 ACID Kickstand FM PURE

Geometry
S M L XL
Seat tube 370 405 420 480
Top Tube Horizontal 567 597 627 670
Seat angle 76° 76° 76° 76°
Head tube angle 65.4° 65.4° 65.4° 65.4°
Chainstays 461 494 494 494
Head tube 149 107 117 139
Wheelbase 1206 1260 1291 1337
BB-Height to Hub 17 36 36 36
Protrusion height – 80mm 756 786 789 799
Reach 420 447 474 510
Stack 622 631 640 660

Ergonomics
S M L XL
Stem length 50 50 50 50
Angle stem 12° 12° 12° 12°
Handlebar width 760 760 760 760
Crank length 165 165 165 165
Length seat post 371 429 472 472
Diameter seatpost 31.6 31.6 31.6 31.6
Stroke seatpost 120 150 170 170
Diameter tire maximum 724 762 762 762
Width tire maximum 68 67 67 67
Rear suspension travel 140 140 140 140

All values are given in millimetres or degrees.
