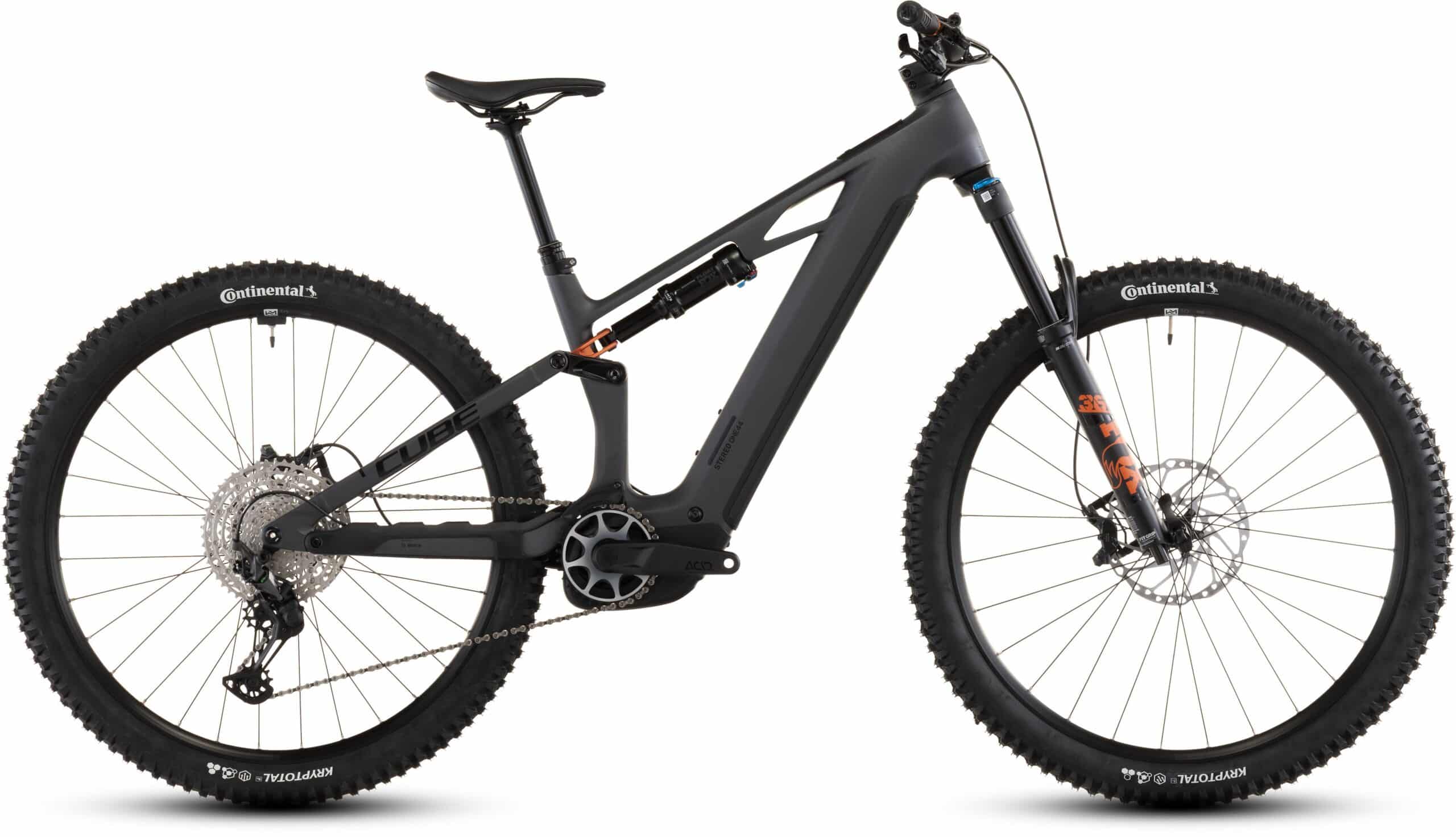

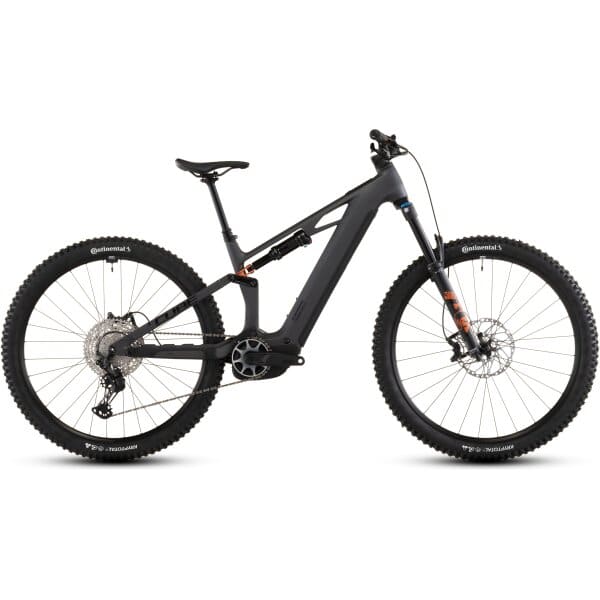

Cube Stereo Hybrid ONE44 HPC SLX 800 slabgrey´n´orange – 2026

Περιγραφή

Product Details

frame C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
size Size Split: 27.5: S // 29: M L XL
Suspension fork Fox 36 Float Rhythm GRIP, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
drive unit Bosch Drive Unit Performance Line CX max. 100Nm (BDU38), Smart System
Remote Bosch System Control incl. Mini Remote
battery Bosch PowerTube 800wh
display Bosch Kiox 400C
charger Bosch 4A
shock Fox Float Performance, 230x60mm (27.5: 210x55mm), Open/Firm Mode
shock hardware Front: 30x8mm, Rear: DU-Bushing 12,7mm
brake system Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
shifters Shimano XT SL-M8100-IR, Direct Attach
crankset ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
cassette Shimano Deore CS-M6100, 10-51T
chain KMC e12
chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem CUBE Performance Stem E-MTB 35, FPI-Link
handlebar CUBE Rise Trail Bar 35
grips ACID Disrupt
wheelset Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
front tyre Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4
rear tyre Conti Kryptotal Rear, Enduro Soft, Tubeless Ready, 2.4
saddle ACID Venec EMTB Trail 140
seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
seat clamp CUBE Semi-Integrated
colour shiftblush´n´art
weight 24,3 kg
Maximum rider weight 125 kg
Structural Weight 160 kg

Recommended products​

#93362 ACID Carrier FULL SUSPENSION RILink Axle Mount

Geometry
Slack/Moderate S M L XL
Seat tube 370 405 420 480
Top Tube Horizontal 567 596 / 598 626 / 627 669 / 671
Seat angle 76° 76.2° / 76° 76.2° / 76° 76.2° / 76°
Head tube angle 65° 64.8° / 65.4° 64.8° / 65.4° 64.8° / 65.4°
Chainstays 450 457 457 457
Head tube 128 106 120 148
Wheelbase 1201 1233 / 1226 1264 / 1256 1311 / 1303
BB-Height to Hub 11 30 30 30
Protrusion height – 80mm 733 748 748 748
Reach 425 452 / 450 477 / 475 512 / 510
Stack 606 620 / 622 632 / 634 658 / 660

Ergonomics
S M L XL
Length seat post 371 429 472 472
Diameter seatpost 31.6 31.6 31.6 31.6
Angle stem 12° 12° 12° 12°
Crank length 165 165 165 165
Diameter tire maximum 721 759 759 759
Width tire maximum 67 67 67 67
Stem length 50 50 50 50
Handlebar width 780 780 780 780
Stroke seatpost 120 150 170 170
Rear suspension travel 143 140 140 140

All values are given in millimetres or degrees.

Recommended products​

#93362 ACID Carrier FULL SUSPENSION RILink Axle Mount

Geometry
Slack/Moderate S M L XL
Seat tube 370 405 420 480
Top Tube Horizontal 567 596 / 598 626 / 627 669 / 671
Seat angle 76° 76.2° / 76° 76.2° / 76° 76.2° / 76°
Head tube angle 65° 64.8° / 65.4° 64.8° / 65.4° 64.8° / 65.4°
Chainstays 450 457 457 457
Head tube 128 106 120 148
Wheelbase 1201 1233 / 1226 1264 / 1256 1311 / 1303
BB-Height to Hub 11 30 30 30
Protrusion height – 80mm 733 748 748 748
Reach 425 452 / 450 477 / 475 512 / 510
Stack 606 620 / 622 632 / 634 658 / 660

Ergonomics
S M L XL
Length seat post 411 411 476 541
Diameter seatpost 31.6 31.6 31.6 31.6
Angle stem 12° 12° 12° 12°
Crank length 165 165 165 165
Diameter tire maximum 721 759 759 759
Width tire maximum 67 67 67 67
Stem length 50 50 50 50
Handlebar width 780 780 780 780
Stroke seatpost 150 150 180 210
Rear suspension travel 143 140 140 140

All values are given in millimetres or degrees.
