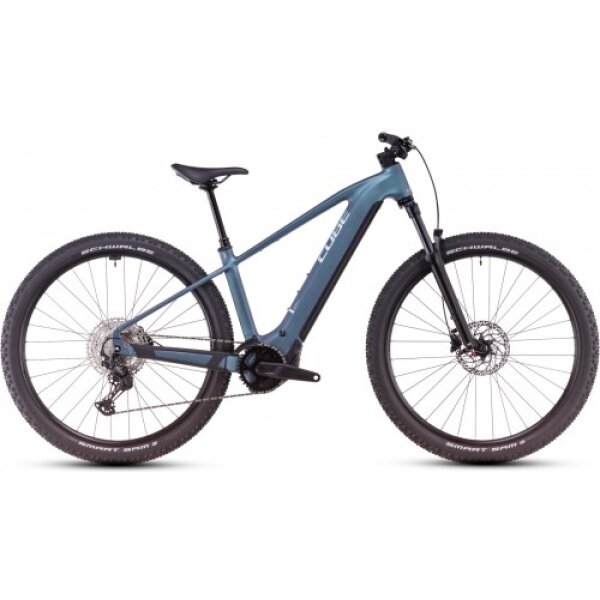

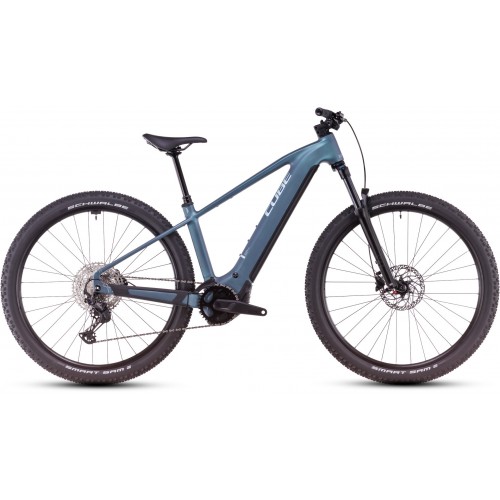

Cube Reaction Hybrid Pro 600 smaragdgrey´n´prism – 2025

Περιγραφή

headset ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm)
handlebar CUBE Rise Trail Bar 35
frame Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
size Classic: Size Split: 27.5: S // 29: M L XL XXL
drive unit Bosch Drive Unit Performance Line CX, Smart System
Remote Bosch Purion 200 with Integrated Display
battery Bosch PowerTube 600wh
charger Bosch 2A
Suspension fork SR Suntour X1-32 LO-R Air, Tapered, 15x110mm, 120mm (27,5: 100mm)
brake system Shimano BR-MT200, Hydr. Disc Brake (180)
rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
shifters Shimano Deore SL-M6100-R, Rapidfire Plus
crankset ACID MTB Hybrid Pro, 38T
cassette Shimano Deore CS-M6100, 10-51T
chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Stem CUBE Performance Stem E-MTB 35, FPI-Link
grips ACID React Pro
rims CUBE EX30, 32H, Disc, Tubeless Ready
front hub CUBE Engineered By Newmen, 15mm, Boost, Centerlock
rear hub CUBE Engineered By Newmen, 12mm, Boost, Centerlock
tyres Schwalbe Smart Sam, Active, 2.6
saddle ACID Sequence Pro 160
seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
pedals ACID PP MTB
colour metallicgrey´n´black
weight 24,3 kg
Structural Weight 140 kg
Maximum rider weight 110 kg

Geometry
Slack/Moderate S M L XL XXL
Seat tube 370 405 450 495 545
Top Tube Horizontal 587 607 627 647 667
Seat angle 74.5° 74° 74° 74° 74°
Head tube angle 67.5° 67.5° 67.5° 67.5° 67.5°
Chainstays 456 470 470 470 470
Head tube 159 110 120 130 145
Wheelbase 1157 1176 1198 1218 1240
BB-Height to Hub 46 65 65 65 65
Protrusion height – 80mm 755 778 782 787 824
Reach 409 420 437 455 471
Stack 646 653 662 674 685

Ergonomics
S M L XL XXL
Length seat post 350 350 350 400 400
Diameter seatpost 31.6 31.6 31.6 31.6 31.6
Angle stem 12° 12° 12° 12° 12°
Crank length 165 175 175 175 175
Diameter tire maximum 722 760 760 760 760
Width tire maximum 66 66 66 66 66
Stem length 60 60 60 60 60
Handlebar width 740 740 740 740 740
Stroke seatpost 100 100 130 130 130

All values are given in millimetres or degrees.
