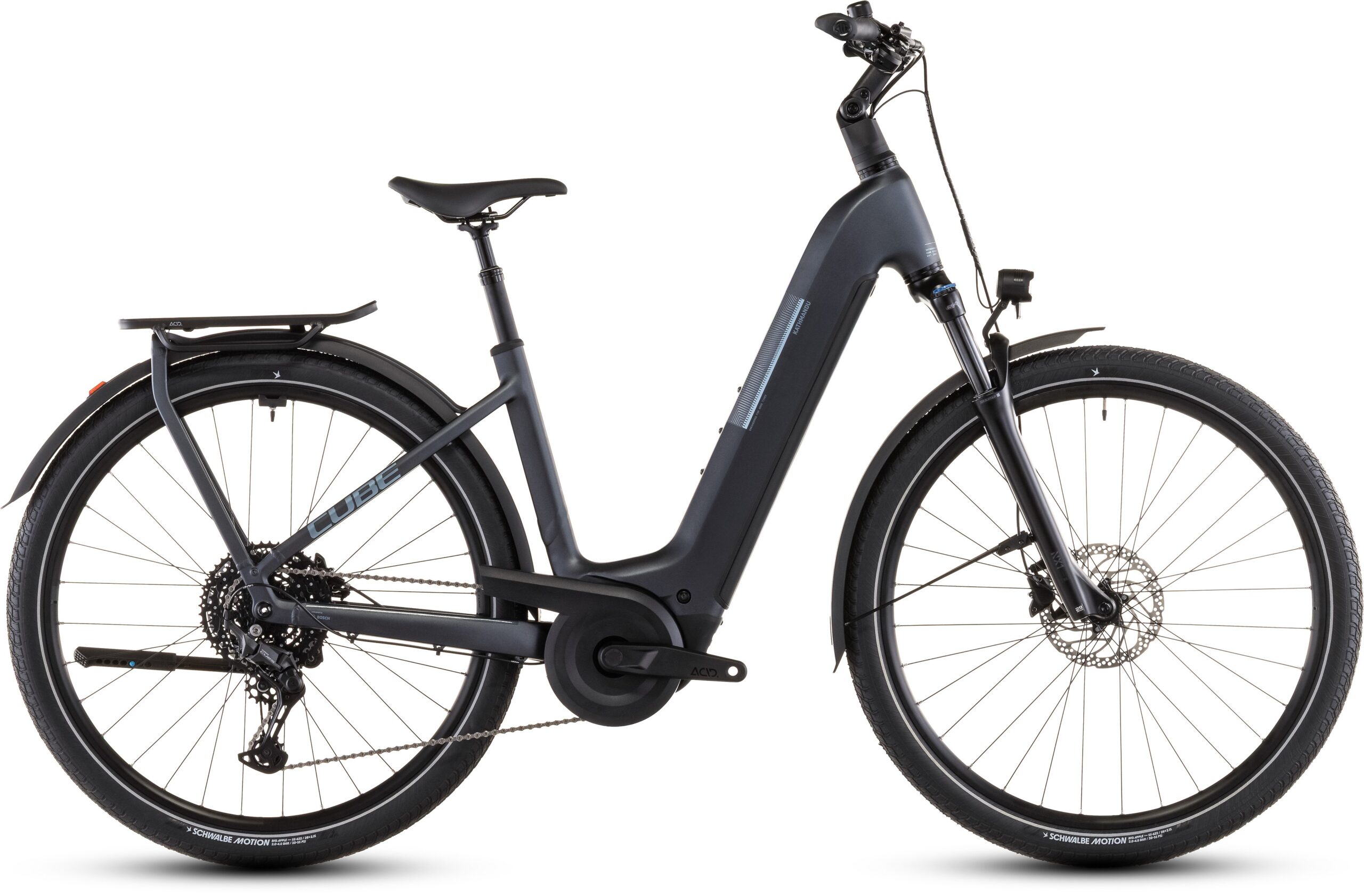

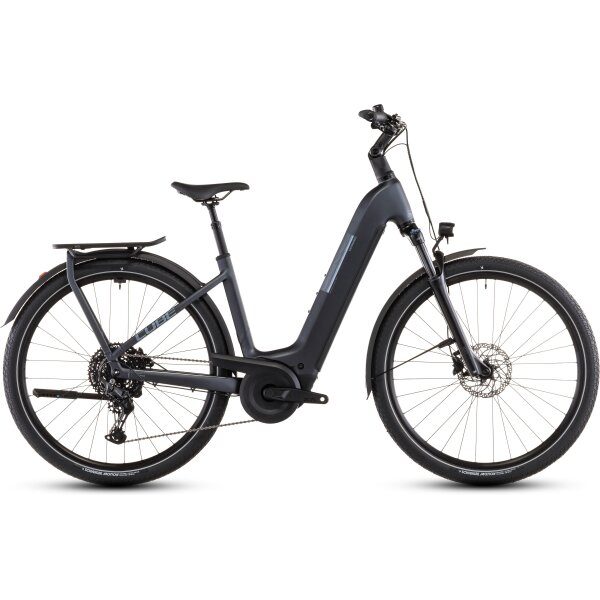

Cube Kathmandu Hybrid ONE 800 Easy Entry metallicgrey´n´grey – 2026

Περιγραφή

Product Details

frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube, Integrated Seatclamp
size: Easy Entry XS/ 46cm, S/ 50cm, M/ 54cm, L/ 58cm, XL/ 62cm
Suspension fork SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
drive unit Bosch Drive Unit Performance Line CX max. 100Nm (BDU38), Smart System
Remote Bosch Purion 200 with Integrated Display
battery Bosch PowerTube 800wh
charger Bosch 2A
brake system Shimano BR-MT200, Hydr. Disc Brake (180/180)
rear derailleur Shimano Cues RD-U6000-GS, 10-Speed
shifters Shimano Cues SL-U6000, Rapidfire-Plus
crankset ACID MTB Hybrid Pro, 40T
cassette Shimano Cues CS-LG300, 11-48T
chain KMC eGlide
headset ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), HIC
Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
handlebar CUBE Comfort Trail Bar, 700mm
grips ACID Travel Comfort
rims ACID Pro 25, 32/32 Spokes, Disc, 15x110mm/12x148mm, Tubeless Ready
tyres Schwalbe Big Apple, Active, 55-622
saddle ACID Sequence 180
seat post CUBE Suspension Seatpost HD, 31.6mm
pedals ACID PP Trekking
front light ACID Front Light PRO-E 60 X-Connect, 12V, DC
rear light ACID Mudguard Rear Light PRO-E, 12V, DC
kickstand ACID FM Pure Kickstand
mudguards ACID 65 Integrated Carrier 3.0
bell Easy Bell
carrier ACID Integrated Carrier 3.0, CUBE Adapter Compatible
lock Abus Art.Nr. 38465
colour pea´n´green
weight 29,3 kg
Structural Weight 140 kg
Maximum rider weight 110 kg

Recommended products

#93433 ACID Carrier IC 3.0 RILink
#94482 ACID Carrier IC 3.0 RiLink HPP
#93468 ACID Kickstand FM PURE

Geometry
50 cm 54 cm 58 cm 62 cm
Seat tube 460 510 560 600
Top Tube Horizontal 590 610 630 650
Seat angle 73.5° 73° 73° 73°
Head tube angle 68° 68.5° 68.5° 68.5°
Chainstays 499 499 499 499
Head tube 110 125 140 165
Wheelbase 1173 1182 1203 1226
BB-Height to Hub 68 68 68 68
Protrusion height – 80mm 777 817 850 882
Reach 401 410 426 439
Stack 638 654 668 692

Ergonomics
50 cm 54 cm 58 cm 62 cm
Length seat post 300 300 300 300
Diameter seatpost 31.6 31.6 31.6 31.6
Crank length 175 175 175 175
Diameter tire maximum 750 750 750 750
Width tire maximum 56 56 56 56
Stem length 65 80 80 80
Handlebar width 700 700 700 700

All values are given in millimetres or degrees.
