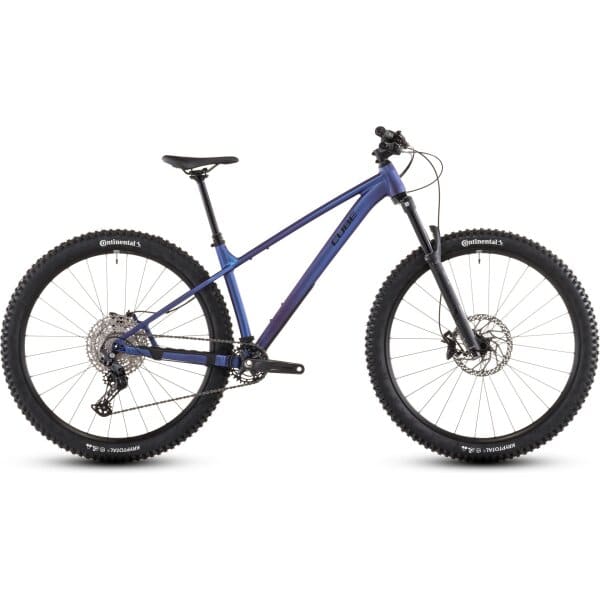

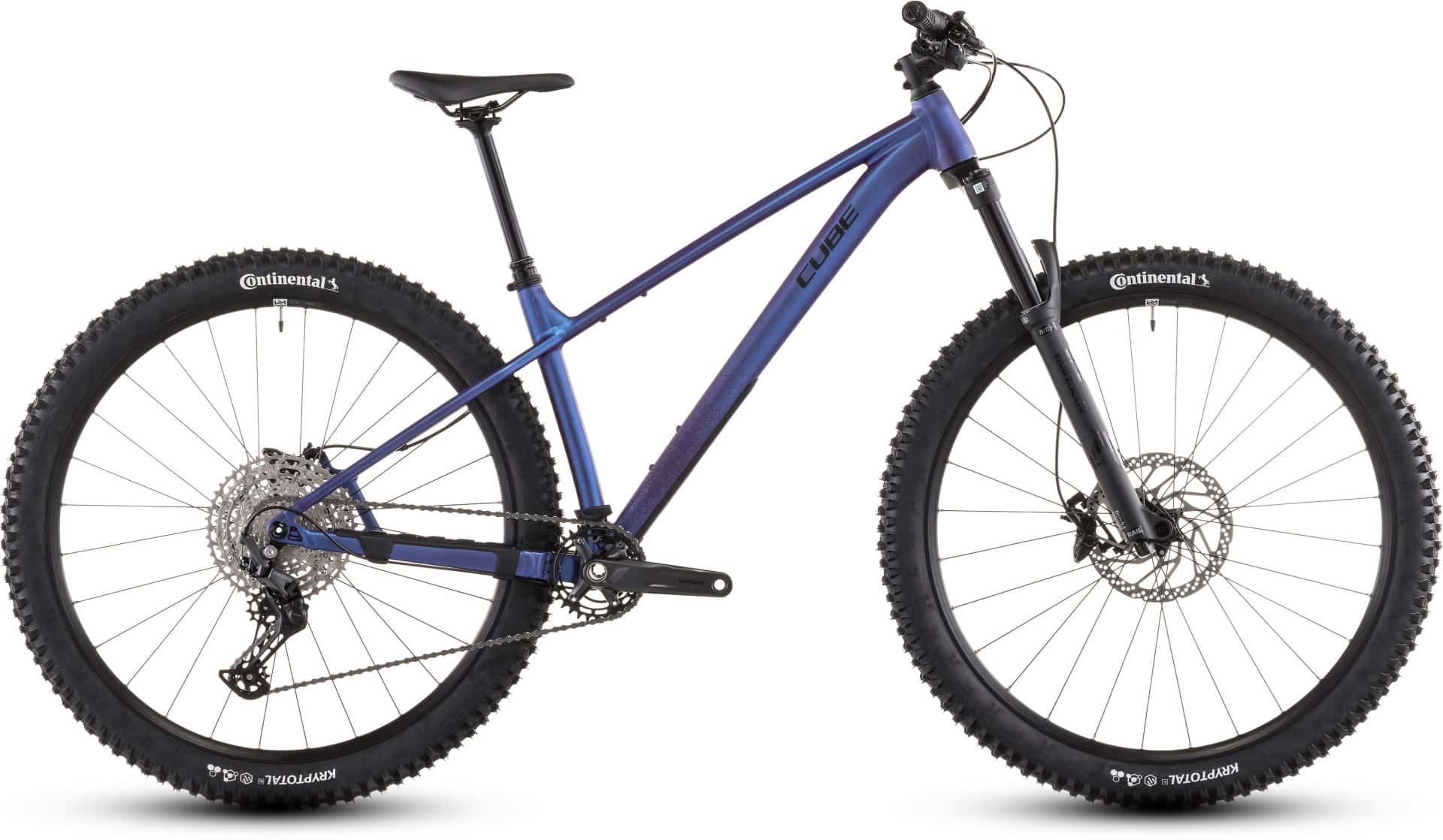

Cube Reaction TM Pro blueviolet´n´black – 2026

Περιγραφή

frame Aluminium Lite, Trail Motion Geometry, AMF,, Internal Cable Routing, , Tapered Headtube, ISCG05, Boost 148, UDH™
size 27.5: XS, S // 29: M, L, XL
Suspension fork Marzocchi Bomber Z2, Sweep Adjust, 140mm
brake system Shimano BR-MT520, Hydr. Disc Brake (203/180)
rear derailleur Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
shifters Shimano Deore SL-M6100, Rapidfire-Plus
bottom bracket Prowheel BSA PW-MB68
crankset Shimano FC-MT511, 32T, Boost
cassette Shimano Deore CS-M6100, 10-51T
chain KMC X12
headset VP Integrated, Top 1 1/8″, Bottom 1 1/2″
Stem Newmen Evolution 318.4 31.8mm
handlebar Newmen Evolution SL 318.25 780mm
grips ACID Disrupt, Soft Compound
wheels Newmen Performance 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
front tyre Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4
rear tyre Conti Kryptotal Rear, Enduro Soft, Tubeless Ready, 2.4
saddle ACID Venec Lite
seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
colour blueviolet´n´black
weight 14,5 kg
Structural Weight 135 kg

Geometry
XS S M L XL
Seat tube 320 370 405 420 470
Top Tube Horizontal 570 590 610 630 653
Seat angle 73.5° 73.5° 73.5° 73.5° 73.5°
Head tube angle 65° 65° 65° 65° 65°
Chainstays 408 408 427 427 427
Head tube 100 100 100 100 110
Wheelbase 1111 1131 1181 1201 1226
BB-Height to Hub 46 46 60 60 60
Protrusion height – 80mm 699 698 735 741 768
Reach 404 424 442 462 482
Stack 605 605 635 635 644

Ergonomics
XS S M L XL
Length seat post 403 462 510 510 510
Diameter seatpost 30.9 30.9 30.9 30.9 30.9
Angle stem 6° 6° 6° 6° 6°
Crank length 170 170 170 170 170
Diameter tire maximum 724 724 764 764 764
Width tire maximum 67 67 67 67 67
Stem length 40 40 50 50 50
Handlebar width 780 780 780 780 780
Stroke seatpost 120 150 170 170 170

All values are given in millimetres or degrees.
