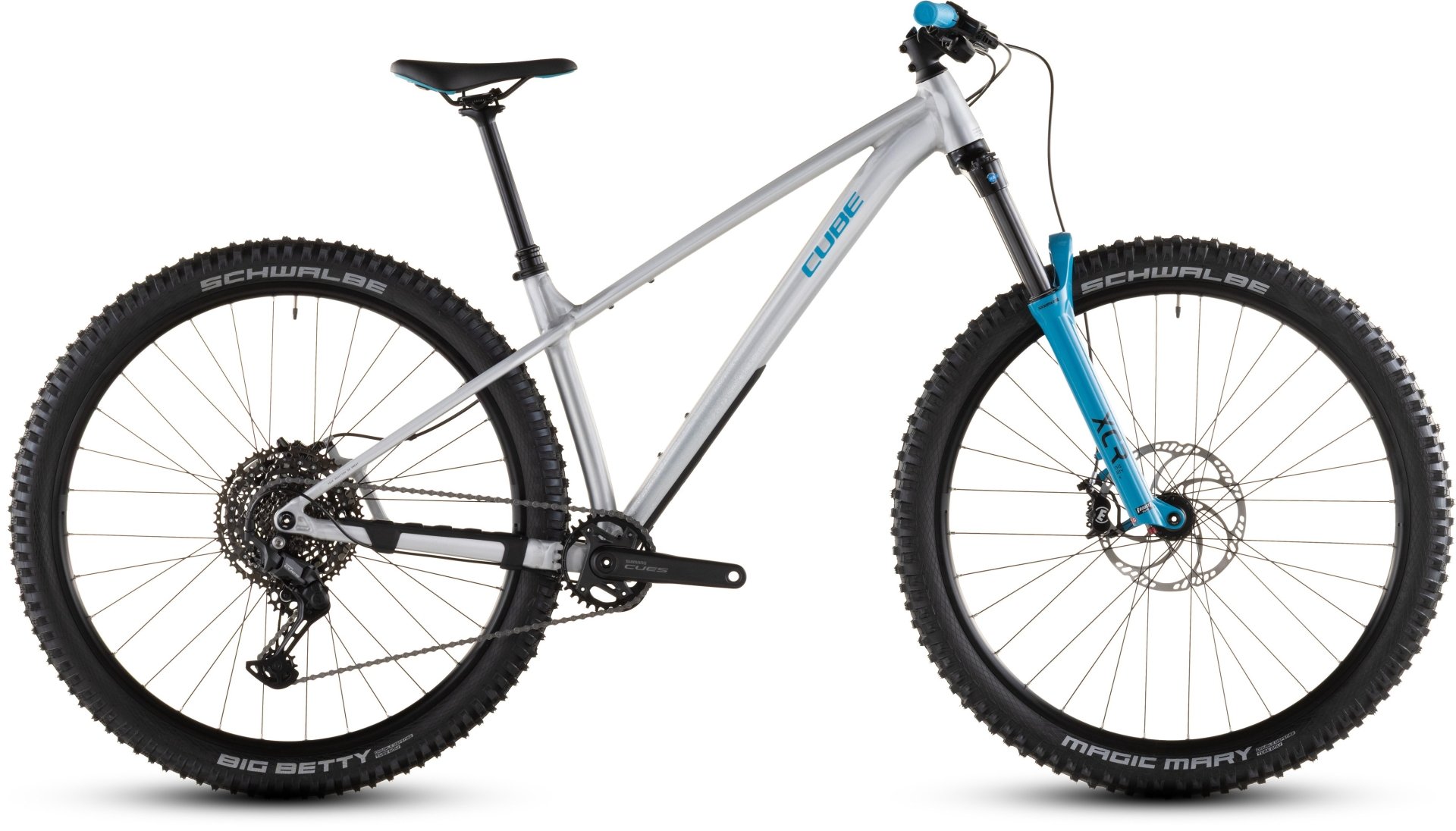

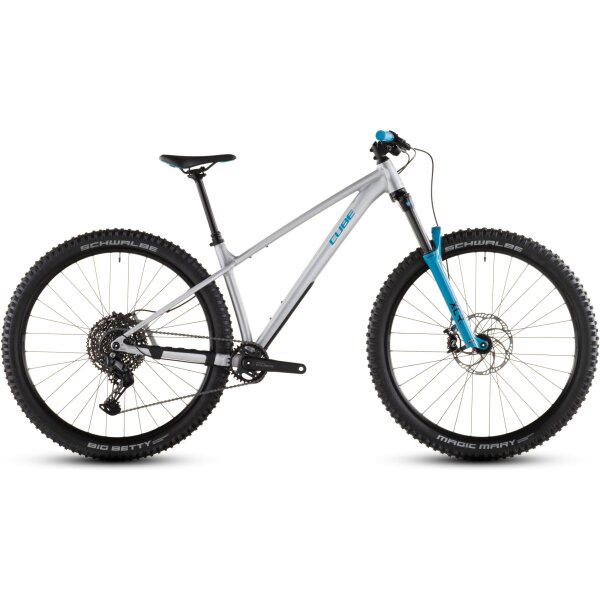

Cube Reaction TM ONE rawmetal´n´blue – 2026

Περιγραφή

frame Aluminium Lite, Trail Motion Geometry, AMF,, Internal Cable Routing, , Tapered Headtube, ISCG05, Boost 148, UDH™
size 27.5: XS, S // 29: M, L, XL
Suspension fork SR Suntour XCR34 2CR Air, Tapered, 15x110mm, 140mm
brake system Magura MT Thirty, Hydr. Disc Brake (180/203)
rear derailleur Shimano Cues RD-U6000-GS, 10-Speed
shifters Shimano Cues SL-U6000, Rapidfire-Plus
bottom bracket Prowheel BSA PW-MB68
crankset Shimano Cues FC-U6000-1, 32T
cassette Shimano Cues CS-LG400, 11-50T
chain KMC xGlide
headset VP Integrated, Top 1 1/8″, Bottom 1 1/2″
Stem CUBE Performance SLX, FPI Link
handlebar CUBE Rise Trail Bar, 760mm
grips ACID React Pro
rims ACID SLX30, 32/32 Spokes 15x110mm/12x148mm, Disc, Tubeless Ready
front tyre Schwalbe Magic Mary, Performance, 2.4
rear tyre Schwalbe Big Betty, Performance, 2.4
saddle ACID Venec Lite
seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
colour rawmetal´n´blue
weight 15,9 kg
Structural Weight 135 kg

Geometry
XS S M L XL
Seat tube 320 370 405 420 470
Top Tube Horizontal 570 590 610 630 653
Seat angle 73.5° 73.5° 73.5° 73.5° 73.5°
Head tube angle 65° 65° 65° 65° 65°
Chainstays 408 408 427 427 427
Head tube 100 100 100 100 110
Wheelbase 1111 1131 1181 1201 1226
BB-Height to Hub 46 46 60 60 60
Protrusion height – 80mm 699 698 735 741 768
Reach 404 424 442 462 482
Stack 605 605 635 635 644

Ergonomics
XS S M L XL
Length seat post 403 462 510 510 510
Diameter seatpost 30.9 30.9 30.9 30.9 30.9
Angle stem 6° 6° 6° 6° 6°
Crank length 170 170 170 170 170
Diameter tire maximum 724 724 764 764 764
Width tire maximum 67 67 67 67 67
Stem length 40 40 50 50 50
Handlebar width 760 760 760 760 760
Stroke seatpost 120 150 170 170 170

All values are given in millimetres or degrees.
